The characteristics of the automatic door shower room
1, automatic control: the system adopts PLC intelligent control means, the LED display on the control panel can correctly display the operating state of the air shower, the interlock state of the double door, the progress of the air shower cycle and the delayed opening state. And is equipped with a photoelectric sensor, one-way channel shower room, from the unclean area into the door, infrared induction after someone blow shower, blow after the door lock, can only go out from the delivery shower room;
2, humanized operation: humanized control panel design, clear indicator light, to give the user clear and correct air shower process instructions. Soft key touch type time relay, LED display and set the blowing time, the range is adjustable from 10-99s, users can adjust the blowing time according to the difference of the environment outside the shower;
3, high cleanliness, high wind speed: using Janing self-produced, high efficiency filter two-stage filtration system, no diaphragm low resistance high efficiency filter, filtration efficiency is 99.99%, to ensure the purification level. Equipped with stainless steel multi-angle adjustable nozzles, double vortex shell outer rotor large air volume low noise fan, air nozzle outlet wind speed up to 25m/s above, blowing on the cargo wind speed of 18m/s above;

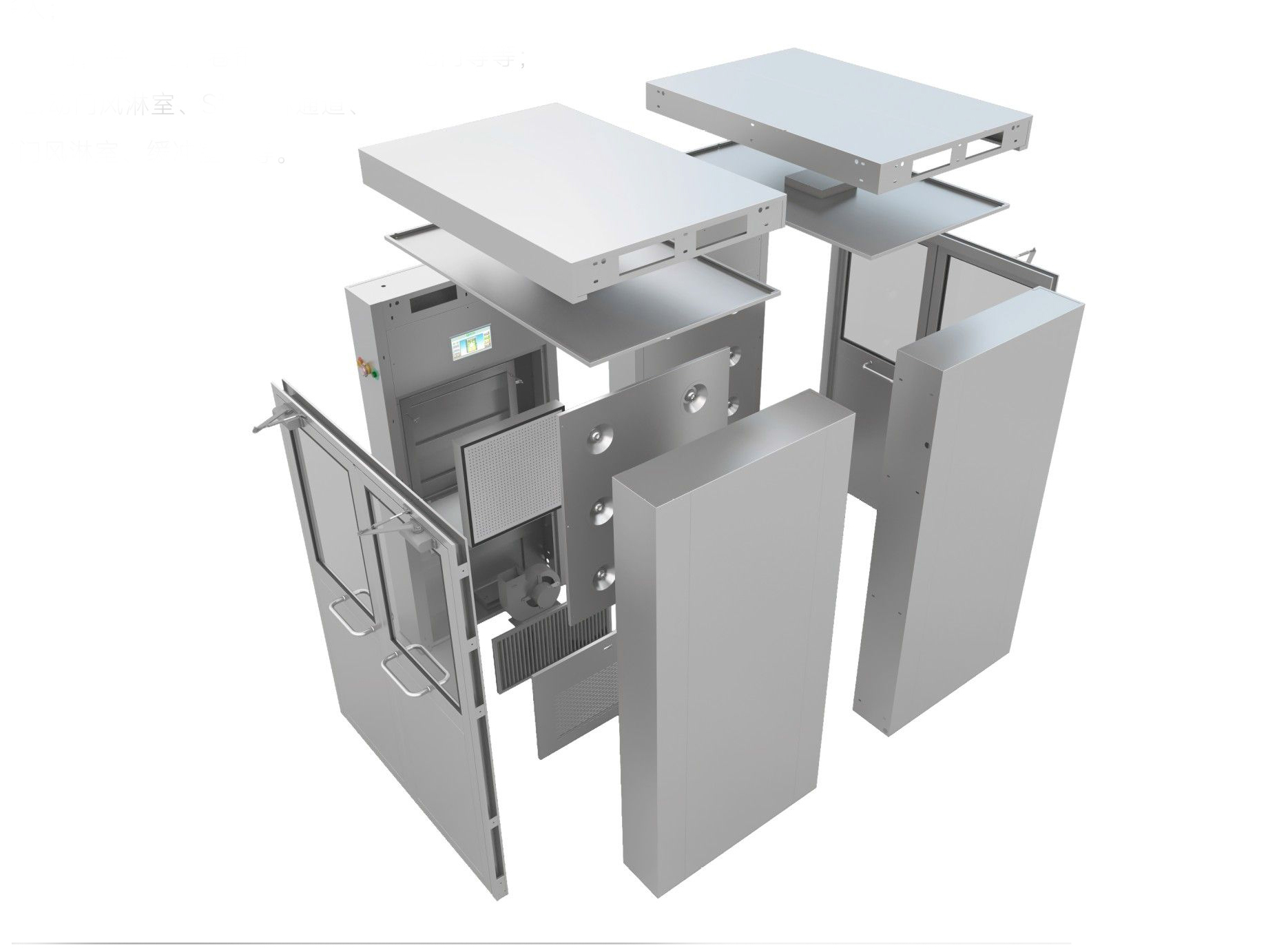

4, modular structure: the cargo shower box adopts modular design scheme, which can be assembled into various lengths of air shower size according to the actual needs. A cargo shower room is composed of one or more sections of air shower unit, for large volume of air shower equipment, can be divided into a number of modules, making the production, transportation, installation especially convenient and fast;
5, automatic door shower room high performance, high sealing: imported electronic components, stable and reliable operation performance, advanced noise reduction and mute device system and the use of EVA sealing material, high sealing performance.
Configuration selection
1.According to the material requirements:Powder coated steel, Polish SUS 201/304/316; Mirror suS 201/304/316
2.According to power supply requirements:voltage 220V/380V, frequency 50Hzl60Hz. Number of phases: single-phase / three-phase;
3.According to the requirements of blowing:single blow,top blow,double blow, three blow;
4.According to the number of people:single person, double person,multiple people.
5.According to the door requirements:manual doors, automatic 90 degree doors,sliding doors. fast rolling shutter doors. curtaindoors, no doors,etc.
6.According to the requirements of use:manual door, automatic door, S type,L type,three-doors air shower, bufferroom,etc.
